    • Gold gun al718 long range locator

      بسم الله الرحمن الرحيم


      gold gun al718 long range locator
      الملفات المرفقة
      [CENTER] [/CENTER]

    • #2
      Gold gun al718

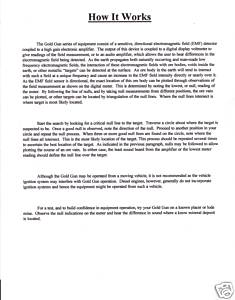

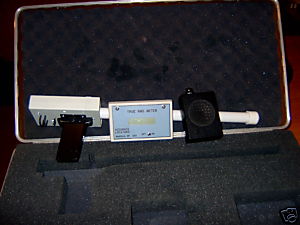

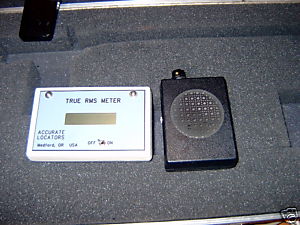

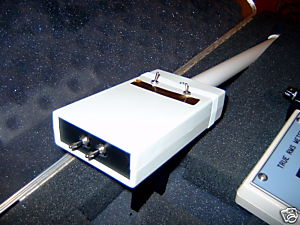

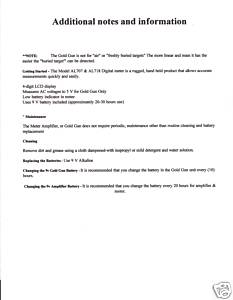

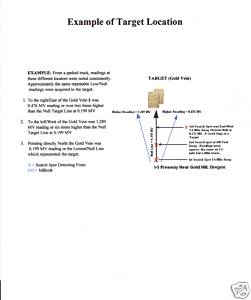

      GOLD GUN AL718 LONG RANGE LOCATOR








      AL718a.pdf (180.2 KB, 922 views)AL718b.pdf (138.3 KB, 699 views)AL718c.pdf (154.7 KB, 690 views)
      الملفات المرفقة
      [CENTER] [/CENTER]

      تعليق


      • #3
        Couldn't get much out of it, and I've never heard of anyone else who has had success with one. Still, I'd like to get mine into an area where there's more natural gold, and see what it does. Based on what I know of Accurate Locators, I don't expect much of it.

        From Jordan
        الملفات المرفقة
        [CENTER] [/CENTER]

        تعليق


        • #4
          AL718(470k).pdf (469.8 KB, 1370 views)



          http://lrlman.com/GG.zip

          http://lrlman.com/GG.zip

          GG718.PDF (78.1 KB, 783 views)


          nice schematic... but how can this "thing" find e.g. gold ???

          For me it can't does that.

          What I understand of this circuit is that there are two opposite wounds on ferrite rods... like one would see e..g. in a gradiometer but with magnetic hi-perm. core, then a "filter" or "decoupler", then amplifier, then another decoupler and another amplifier !

          Does it find gold ?

          For me if another "version" of "anomaly detector": this is magnetic , where zahori is electrostatic.

          That's so, zahori react to E-field and E-compoent of EM radiations, this react to local B spot variations or B-component of EM radiations.

          If you use it near a power line you'll see the ufo ! Like with zahori.

          You probably have to use it from E-W direction cause N-S movements will pick variation of coupled Earth magnetic field.

          Unit is probably subject to ULF/ELF (if present) detection... e.g. low frequency modulation of 50/60Hz , ULF due to navy subarine comm. emissions, ULF due to atmosperics phenomenon etc etc etc

          But then ? Is it an advantage for you ? Don't understand.

          Any big spot variation of Earth magnetic field will be detected by movements of rods axis near the hi-gradient area, but can you pinpoint anything that way ?

          How can it just pick few pT variations due to gold and not nT ones due to e.g. big iron stuff in ground ?

          For me cannot find gold, just gold or precious metals, but will find any power line, any railway emission, any huge scrap of iron, any lightening etc etc

          Nice schematic, yes, have a differential fet configuration, hi-impedance...
          but for me is just another zahori that serve nothing.

          Best regards,
          [CENTER] [/CENTER]

          تعليق


          • #5
            Do you know who is the difference between AL707 and AL718
            [CENTER] [/CENTER]

            تعليق


            • #6
              Hi all
              From what I have studied in the schematic of the GG, this detector has 2 ferrites sitting opposite of each other, and when they are in line with a signal they are mixed and they null, but only when the antenna is in line with the strongest signal, that is how it works.
              Also it is picking up the magnetic component of VLF signals and currents in the earth.


              Hello:

              Yes the model 707 have only one rod ferrite 1/2 inch, the other model 718 two ferrite.
              The ferrite is difficult to find, I buy one in company, California, U.S.A.
              and in the stormwise.com are other, 1/2 x 12 inch.

              I experiment with diferent ferrites, small, etc, and with small rod I listen Am radio, the gun is a simple receiver? or what.

              yes I know is better work with low freq. this penetrate better in ground.
              and I think build a transmitter to gun, the company say GG work 7.5 khz.

              some day put in my yard, detector Garret and I receive the signal 20 meters away....
              [CENTER] [/CENTER]

              تعليق


              • #7
                Hello, the gold gun Al718 are more sensitive for smaller targets.

                http://img294.imageshack.us/g/escanear0004e.jpg/

                http://img10.imageshack.us/i/escanear0005t.jpg/
                [CENTER] [/CENTER]

                تعليق


                • #8
                  http://www.geotech1.com/forums/showthread.php?t=11077


                  http://thunting.com/smf/black_box_te...n-t8905.0.html


                  http://thunting.com/smf/black_box_te....html;msg55983
                  [CENTER] [/CENTER]

                  تعليق


                  • #9
                    http://thunting.com/smf/index.php?du...action=search2
                    [CENTER] [/CENTER]

                    تعليق


                    • #10
                      http://thunting.com/smf/empty-t2586....cseen#msg20225
                      [CENTER] [/CENTER]

                      تعليق


                      • #11
                        jeffrey:
                        We have a Gold Gun model AL718 for sale. It was used on 3 to 4 occasions only and because we had found a huge target last October 2007, we decided to get rid of it, we are asking for USD2,500.00 however serious buyer may still be negotiable.

                        We are located in Sandakan, Eastern Part of Sabah near Southern Part of The Philippines.

                        * The truth is you need the right tool for every job in order to be successful, likewise, an experienced Mechanic could never repair an engine without the right spanner*

                        Serious buyer may email at jeff__lai@hotmail.com or call Jeffrey 60198114781


                        Thank you.


                        Jeffrey




                        Linkback: http://thunting.com/smf/index.php/to....html#msg20225
                        [CENTER] [/CENTER]

                        تعليق


                        • #12

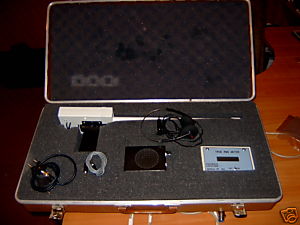

                          Vendo maquina Gold Gun Model AL718 – Detectora de Metales ORO, GUACAS, ENTIERROS, TESOROS
                          Vendo maquina Detectora de metales GOLD GUN MODEL AL718 - Busca metales, tesoros, guacas, oro, cavidades, metales preciosos, entierros, minas, a corta y larga distancia.
                          Visualizador digital
                          Antena con alcance hasta de 800 metros
                          Señal fuerte para identificar pequeños objetos
                          Switch de 3 posiciones
                          Estuche protector


                          http://medellin.olx.com.co/gold-gun-...s-iid-47487770
                          [CENTER] [/CENTER]

                          تعليق


                          • #13
                            http://www.clasificados.decolombia.n...l.php?id=15547
                            [CENTER] [/CENTER]

                            تعليق


                            • #14
                              http://redeparede.com.co/medellin/en...metales-278430
                              [CENTER] [/CENTER]

                              تعليق


                              • #15
                                koroidepste you.
                                But in a chartimou I have marked a value from 707.
                                10 years ago exactly when
                                I had on hand.
                                in this paper seems a simeiosimou and an arrow with sudden massive drop near the Ionian highway.
                                provim in the hillocks.
                                there by accident last year that a boultoza that made the way the roof fell in half measure depths of a tomb.
                                this ftochoulis upright warriors wore the armor and did not know what was in rafiatou a bid.!
                                invaluable in the findings ruled archeology.

                                Missing and the warrior.
                                certainly not a museum einai.mallon to have turned the euro.

                                One thing about this not you know certainly should not blame it.!
                                and I consider useless so that should have been Ionian Motorway to see how wrong I was and how few were aware to work in 707.



                                http://www.psaxtiria.net/forum/showthread.php?t=576
